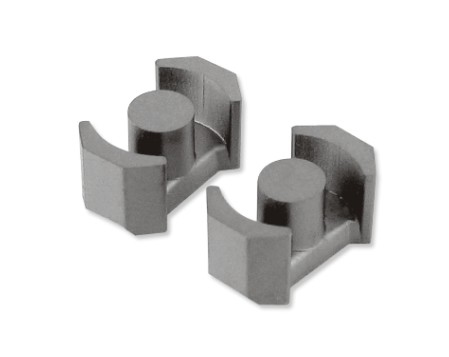

RM Core
Particular
| 磁芯型号 | 尺寸Dimensions(mm) | 有效参数Effective Parameter | AL(nH/N2)±25% | AL(nH/N2)±30% | |||||||||||||
| Core Type | A | B | C | D | E | F | G | H | CL/A (mm-1) | Ae (mm2) | Le (mm) | Ve (mm3) | 重量Weight(g) | FP40 | FH5K | FH7K | FH10K |
| RM4A | 10.8±0.2 | 5.2±0.1 | 4.45±0.15 | 3.7±0.1 | 8.15±0.25 | 3.6±0.1 | 9.63±0.25 | 1.64 | 13.6 | 22.3 | 313 | 1.7 | 900 | 1500 | 1700 | 1700 | |
| RM4B | 10.8±0.2 | 5.4±0.1 | 4.45±0.15 | 3.7±0.1 | 8.15±0.25 | 3.8±0.1 | 9.63±0.25 | 1.63 | 13.87 | 22.7 | 315 | 1.8 | 900 | ||||
| RM5A | 14.65±0.25 | 5.2±0.15 | 4.8±0.1 | 10.4±0.2 | 3.25±0.1 | 4.45±0.125 | 12.3+0-0.5 | 0.94 | 23.8 | 22.3 | 530 | 2.7 | 1250min | ||||
| RM6A | 17.9+0-0.6 | 6.25+0-0.1 | 8±0.2 | 6.3±0.1 | 12.4+0.5-0 | 4.0+0.2-0 | 5.25±0.15 | 14.7+0-0.6 | 0.78 | 37 | 29 | 1050 | 5.6 | 2350 | |||
| RM6B | 17.9+0-0.6 | 6.25+0-0.1 | 6.3±0.1 | 12.4+0.5-0 | 4.0+0.2-0 | 5.42±0.125 | 14.7+0-0.6 | 0.8 | 37 | 29.6 | 1096 | 5.6 | 2300 | ||||
| RM7 | 20.10±0.4 | 6.70±0.1 | 7.1±0.2 | 15.20min | 4.45±0.15 | 16.85±0.4 | 0.7 | 43 | 30.4 | 1340 | 6.8 | 2660 | |||||
| RM8 | 23.2+0-0.9 | 8.2±0.1 | 11.0+0-0.4 | 8.55+0-0.3 | 17.0+0.6-0 | 5.5±0.1 | 7.35±0.125 | 19.5+0-0.8 | 0.59 | 64 | 38 | 2400 | 12.3 | 3300 | 5900 | 5900 | 6000 |
| RM10A | 27.8±0.65 | 9.3±0.15 | 13.25±0.25 | 10.65±0.2 | 21.65±0.45 | 6.4±0.2 | 8.35±0.125 | 24.15±0.55 | 0.49 | 85.3 | 89.1 | 4472 | 20.9 | 4200 | |||
| RM12 | 37.6+0-1.5 | 12.25±0.1 | 16.1+0-0.5 | 12.8+0-0.4 | 24.9+1.1-0 | 8.4+0.3-0 | 11.05±0.125 | 29.8+0-1.2 | 0.42 | 144 | 60.6 | 8752 | 45 | 5300 | |||
