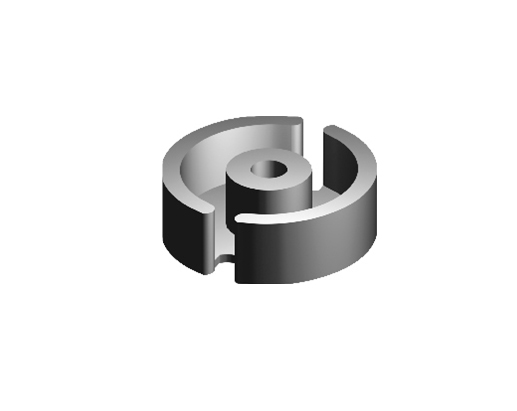

P Core
Particular
| 磁芯 型号 |
尺寸Dimensions(mm) |
有效参数Effective Parameter |
AL(nH/N2)±25% |
| Core Type |
A |
B |
C |
D |
E |
F |
G |
H |
CL/A (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
重量Weight(g) |
FP40 |
| P0905 |
9.15±0.15 |
2.65±0.1 |
|
3.8±0.1 |
7.5min |
1.8min |
|
2.1±0.3 |
1.01 |
12.8 |
12.9 |
164 |
0.9 |
1200 |
| P1107 |
11.1±0.2 |
3.3±0.075 |
6.8±0.25 |
4.6±0.1 |
9.25±0.15 |
2.3+0.1-0.075 |
|
2.2±0.3 |
0.94 |
17.3 |
16.5 |
309 |
1.7 |
1800 |
| P1408 |
14.0±0.3 |
4.2±0.2 |
|
5.9±0.2 |
11.8±0.4 |
3.1±0.2 |
2.9±0.3 |
3.3±0.6 |
0.87 |
23.7 |
20.7 |
490 |
2.7 |
1950 |
| P1811 |
18.0±0.4 |
5.35±0.15 |
|
7.45±0.15 |
14.9min |
3.8±0.2 |
|
|
0.63 |
41.6 |
26.3 |
1096 |
6 |
2600 |
| P2616 |
25.5±0.5 |
8.05±0.1 |
|
11.1±0.3 |
21.6±0.4 |
5.65±0.15 |
|
|
0.44 |
86.7 |
38.1 |
3306 |
18.2 |
5000 |
| P3019 |
30.0±0.5 |
9.4±0.2 |
20.3ref |
13.3±0.2 |
24.6min |
6.6±0.2 |
5.6±0.2 |
4.3 ref |
0.4 |
120 |
47.5 |
5705 |
31.5 |
5200 |
| P3622 |
35.6±0.6 |
10.9±0.2 |
26.2ref |
15.9±0.3 |
29.8min |
7.55±0.25 |
5.5±0.2 |
4.6 ref |
0.25 |
206.6 |
52.6 |
10867 |
60 |
8300 |
| P4830 |
47.5±1.0 |
15.0±0.3 |
37.0±1.0 |
19.2±0.3 |
41.0±1.0 |
10.5±0.3 |
5.5+0.2 |
4.5±0.5 |
0.23 |
323.1 |
73.1 |
23620 |
132 |
9400 |
