EELP & EILP
Particular

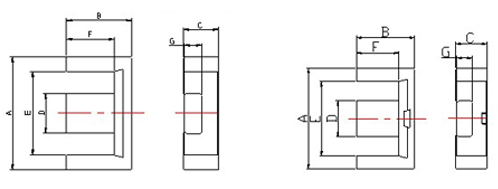

| 磁芯型号 | 尺寸Dimensions(mm) | 有效参数Effective Parameter | AL(nH/N2)±25% | ||||||||||
| Core Type | A | B | C | D | E | F | I | 重量Weight(g) | CL/A (mm-1) | Le (mm) | Ae (mm2) | Ve (mm3) | FP40 |
| EELP14/7/5 | 14±0.3 | 3.5±0.1 | 5±0.15 | 3±0.1 | 11±0.25 | 2±0.1 | 1.7 | 1.45 | 20.7 | 14.3 | 296 | 1100 | |
| EILP14/5/5 | 14±0.3 | 3.5±0.1 | 5±0.15 | 3±0.1 | 11±0.25 | 2±0.1 | 1.5±0.1 | 1.4 | 1.15 | 16.7 | 14.5 | 242 | 1400 |
| EELP18/8/10 | 18±0.3 | 4.0±0.1 | 10±0.2 | 4±0.1 | 14±0.3 | 2±0.1 | 5.1 | 0.62 | 24.3 | 39.3 | 955 | 2600 | |
| EILP18/6/10 | 18±0.3 | 4.0±0.1 | 10±0.2 | 4±0.1 | 14±0.3 | 2±0.1 | 2±0.1 | 4.3 | 0.51 | 20.3 | 39.5 | 802 | 2900 |
| EELP22/11/16 | 21.8±0.4 | 5.7±0.2 | 15.8±0.3 | 5±0.1 | 16.8±0.4 | 3.2±0.2 | 13.5 | 0.41 | 32.5 | 78.3 | 2540 | 4500 | |
| EILP22/8/16 | 21.8±0.4 | 5.7±0.2 | 15.8±0.3 | 5±0.1 | 16.8±0.4 | 3.2±0.2 | 2.5±0.2 | 10.9 | 0.33 | 26.1 | 78.5 | 2050 | 5200 |
| EELP32/13/20 | 31.75±0.65 | 6.35±0.2 | 20.35±0.4 | 6.35±0.15 | 25.4±0.5 | 3.2±0.2 | 28.4 | 0.32 | 41.4 | 130.0 | 5390 | 5700 | |
| EILP32/9.5/20 | 31.75±0.65 | 6.35±0.2 | 20.35±0.4 | 6.35±0.15 | 25.4±0.5 | 3.2±0.2 | 3.15±0.2 | 24.2 | 0.27 | 35.1 | 130.0 | 4560 | 6300 |
| EELP38/16/25 | 38.1±0.8 | 8.25±0.2 | 25.4±0.55 | 7.6±0.2 | 30.8±0.6 | 4.45±0.25 | 53.2 | 0.27 | 52.4 | 194.0 | 10200 | 7200 | |
| EILP38/12/25 | 38.1±0.8 | 8.25±0.2 | 25.4±0.55 | 7.6±0.2 | 30.8±0.6 | 4.45±0.25 | 3.8±0.2 | 44.4 | 0.22 | 43.6 | 194.0 | 8440 | 8300 |
| EELP43/19/28 | 43.2±0.9 | 9.5±0.2 | 27.9±0.6 | 8.1±0.2 | 35.4±0.7 | 5.4±0.25 | 72.3 | 0.27 | 61.1 | 229.0 | 14000 | 7300 | |
| EILP43/14/28 | 43.2±0.9 | 9.5±0.2 | 27.9±0.6 | 8.1±0.2 | 35.4±0.7 | 5.4±0.25 | 4.1±0.2 | 62.5 | 0.22 | 50.4 | 229.0 | 11500 | 8500 |
| EELP58/21/38 | 58.4±1.2 | 10.55±0.2 | 38.1±0.8 | 8.1±0.2 | 51.1±1.1 | 6.5±0.25 | 133 | 0.26 | 80.7 | 310.0 | 25000 | 7400 | |
| EILP58/15/38 | 58.4±1.2 | 10.55±0.2 | 38.1±0.8 | 8.1±0.2 | 51.1±1.1 | 6.5±0.25 | 4.05±0.2 | 113 | 0.22 | 67.7 | 310.0 | 21000 | 8400 |
| EELP64/20/50 | 64±1.3 | 10.2±0.2 | 50.8±1.1 | 10.2±0.2 | 53.6±1.1 | 5.1±0.25 | 215 | 0.15 | 79.9 | 519.0 | 41500 | 12500 | |
| EILP64/15/50 | 64±1.3 | 10.2±0.2 | 50.8±1.1 | 10.2±0.2 | 53.6±1.1 | 5.1±0.25 | 5.1±0.25 | 190 | 0.13 | 69.7 | 519.0 | 36200 | 14000 |
