SCRC Core

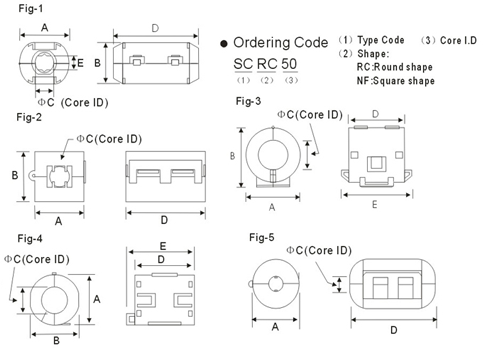

Particular
| No | Ietm | Fig | Unit:mm | Impedance(Ω)min | |||||
| A | B | ΦC | D | E | 25MHz | 100MHz | |||
| 1 | SCRC 35B | 1 | 13.0±1 | 11.8±1 | 5.0±0.8 | 25.5±1 | 2.5±1 | 60 | 100 |
| 2 | SCRC 90B | 1 | 19.5±1 | 18.0±1 | 9.0±0.8 | 35.0±1 | 5.5±1 | 55 | 130 |
| 3 | SCNF 65 | 2 | 17.5±1 | 19.5±1 | 6.5±0.8 | 32.5±1 | 120 | 230 | |
| 4 | SCNF 100 | 2 | 22.0±1 | 23.5±1 | 10±0.8 | 33.0±1 | 90 | 180 | |
| 5 | SCNF 130A | 2 | 29.0±1 | 30.0±1 | 13±0.8 | 32.0±1 | 120 | 200 | |
| 6 | SCRC 16-13-8 | 3 | 19.5±1 | 23.0±1 | 8.0±0.8 | 17.0±1 | 23±1 | 42 | 85 |
| 7 | SCRC 16-16-8 | 3 | 19.5±1 | 23.0±1 | 8.0±0.8 | 19.5±1 | 26±1 | 40 | 100 |
| 8 | SCRC 20-10-10 | 3 | 24.5±1 | 28.5±1 | 10.0±0.8 | 13.5±1 | 20±1 | 35 | 75 |
| 9 | SCRC 24-14-11 | 3 | 28.0±1 | 32.0±1 | 11.5±0.8 | 18.0±1 | 24±1 | 50 | 100 |
| 10 | SCRC 25-12-15 | 3 | 29.0±1 | 33.0±1 | 15±0.8 | 15.5±1 | 21.5±1 | 30 | 70 |
| 11 | SCRC 70 | 4 | 15.5±1 | 14.0±1 | 7.0±0.8 | 18.0±1 | 22±1 | 35 | 60 |
| 12 | SCRC 90A | 4 | 20.0±1 | 9.0±0.8 | 31.5±1 | 35.5±1 | 60 | 130 | |
| 13 | SCRC 50 | 5 | 16.5±1 | 5.0±0.8 | 29.5±1 | 70 | 120 | ||
| 14 | SCRC 130B | 4 | 30.0±1 | 13±0.8 | 34.0±1 | 39.0±1 | 110 | 180 | |
| 15 | SCRC 1330B | 1 | 23.5±1 | 22.2±1 | 13.5±0.8 | 36.0±1 | 10.5±1 | 80 | 160 |
