IP Core
Particular

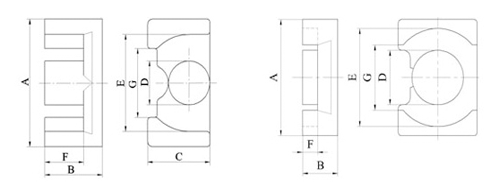

| 磁芯型号 | 尺寸Dimensions(mm) | 有效参数Effective Parameter | AL(nH/N2)±25% | ||||||||||
| Core Type | B | C | D | E | F | G | H | CL/A (mm-1) | Ae (mm2) | Le (mm) | Ve (mm3) | 重量Weight(g) | FP40 |
| LP22/13 | 25.0±0.5 | 11.2±0.15 | 12.9±0.35 | 8.6±0.3 | 18.55min | 8.2±0.15 | 13.5±0.6 | 21 | 0.72 | 67.9 | 49 | 3327 | 2800 |
| LP23/8 | 16.5±0.3 | 11.7±0.15 | 8.7±0.25 | 5.7±0.2 | 12.5±0.3 | 8.7±0.15 | 9.0±0.3 | 9.8 | 1.37 | 32.17 | 44.1 | 1380 | 1500 |
| LP32/13 | 25.0±0.5 | 15.9±0.15 | 12.9±0.35 | 8.6±0.3 | 18.55min | 12.05±0.15 | 13.5±0.5 | 29 | 0.93 | 71.52 | 66.36 | 4746.3 | 2400 |
| ERP32/27 | 32±0.6 | 13.5±0.2 | 23±0.5 | 15±0.35 | 27±0.6 | 7.6±0.2 | 18±0.6 | 63 | 0.23 | 195 | 43.9 | 8561 | 11100 |
