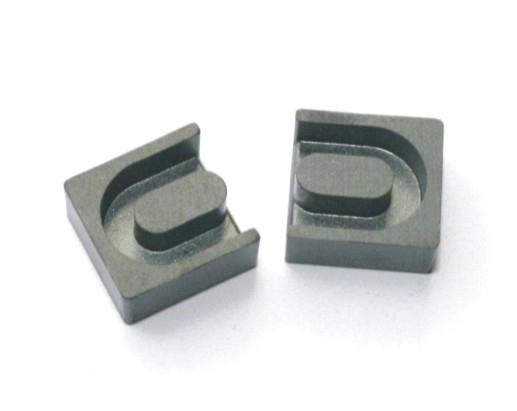

EOP Core
Particular
| 磁芯型号 |
尺寸Dimensions(mm) |
有效参数Effective Parameter |
AL(nH/N2)±25% |
AL(nH/N2)±30% |
| Core Type |
A |
B |
C |
D |
E |
F |
H |
|
CL/A (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
重量Weight(g) |
FP40 |
FH5K |
FH7K |
FH10K |
| EOP7 |
9.40±0.2 |
3.7±0.1 |
8.9±0.2 |
3.3±0.15 |
≥7.6 |
2.3+0.3 |
5.7±0.2 |
FP40 |
0.88 |
17.7 |
15.6 |
276 |
2.8 |
1850 |
2200 |
2400 |
2450 |
| EOP7.5 |
9.60±0.2 |
3.7±0.1 |
8.9±0.2 |
3.3±0.15 |
≥7.6 |
2.5±0.2 |
5.7±0.2 |
高BS |
0.88 |
17.7 |
15.6 |
276 |
2.8 |
1850 |
2200 |
2400 |
2450 |
| EOP9.5 |
9.55±0.35 |
4.55±0.25 |
10.05±0.35 |
3.0+0.20 |
≥7.40 |
3.1+0.2 |
6.55±0.15 |
FP40 |
0.69 |
21.8 |
15 |
327 |
3.0 |
2050 |
|
|
|
| EOP9.5 |
9.55±0.35 |
4.65+0.15 |
10.05±0.35 |
3.0+0.20 |
≥7.40 |
3.1+0.2 |
6.55±0.15 |
高BS |
0.69 |
21.8 |
15 |
327 |
3.1 |
2050 |
|
|
|
| EOP9.5A |
9.60±0.30 |
4.95±0.15 |
10.20±0.20 |
3.0+0.20 |
≥7.60 |
3.1+0.20 |
6.55±0.15 |
高BS |
0.69 |
21.8 |
15 |
327 |
3.2 |
2050 |
|
|
|
| EOP10 |
9.90±0.40 |
5.0±0.1 |
10.20±0.20 |
3.15±0.15 |
≥7.80 |
3.10+0.20 |
6.55±0.15 |
高BS |
|
|
|
|
|
|
|
|
|
| EOP12.6 |
12.60±0.25 |
4.20±0.10 |
7.0±0.15 |
4.4±0.15 |
≥9.75 |
2.95+0.15 |
3.20±0.15 |
高BS |
|
|
|
|
|
|
|
|
