DnH Core
Particular
Ietm |

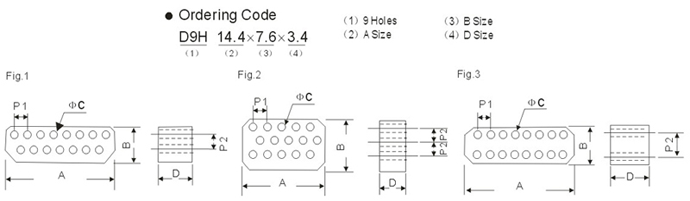

Fig | Unit:mm | Impedance(Ω)min | |||||||
| A | B | D | P1 | P2 | ΦC | 25MHz | 100MHz | |||
| 1 | D15H 13.27×9.5×2.2 | 2 | 13.27±0.3 | 9.5±0.3 | 2.2±0.15 | 2.28±0.1 | 2.54±0.15 | 1.1±0.1 | 44 | 65 |
| 2 | D15H 13.6×9.5×2.2 | 2 | 13.6±0.3 | 9.5±0.3 | 2.2±0.1 | 2.28±0.1 | 2.54±0.1 | 1 | 20 | 40 |
| 3 | D9H 14.4×7.6×3.4 | 1 | 14.4±0.3 | 7.6±0.2 | 3.4±0.15 | 2.74±0.1 | 2.84±0.1 | 1.57 | 25 | 40 |
| 4 | D9H 14.5×7.6×2.8 | 1 | 14.5±0.2 | 7.6±0.2 | 2.8±0.1 | 2.74±0.1 | 2.84±0.1 | 1.57 | 25 | 50 |
| 5 | D16H 20.3×9.95×3.3 | 3 | 20.3±0.6 | 9.95±0.2 | 3.3±0.25 | 2.54±0.1 | 2.54±0.15 | 1.2±0.1 | 50 | 80 |
| 6 | D16H 21.5×11.5×1.5 | 3 | 21.5±0.4 | 11.5±0.3 | 1.5±0.1 | 2.50±0.1 | 7.6±0.2 | 1.1 | 15 | 25 |
| 7 | D15H 22.6×7.6×2.8 | 1 | 22.6±0.4 | 7.6±0.2 | 2.8±0.1 | 2.70±0.1 | 2.84±0.1 | 1.57 | 20 | 30 |
| 8 | D25H 36.3×7.6×2.8 | 1 | 36.3±0.5 | 7.6±0.2 | 2.8±0.1 | 2.74±0.1 | 2.84±0.1 | 1.57 | 25 | 50 |
| 9 | D37H 52.9×7.6×2.8 | 1 | 52.9±0.5 | 7.6±0.2 | 2.8±0.1 | 2.74±0.1 | 2.84±0.1 | 1.57 | 40 | 70 |
| 10 | D15H 14.08×6.92×2.0 | 2 | 14.08±0.4 | 6.92±0/0.25 | 2±0.1 | 2.28±0.1 | 1.98±0.1 | 1 | ||
